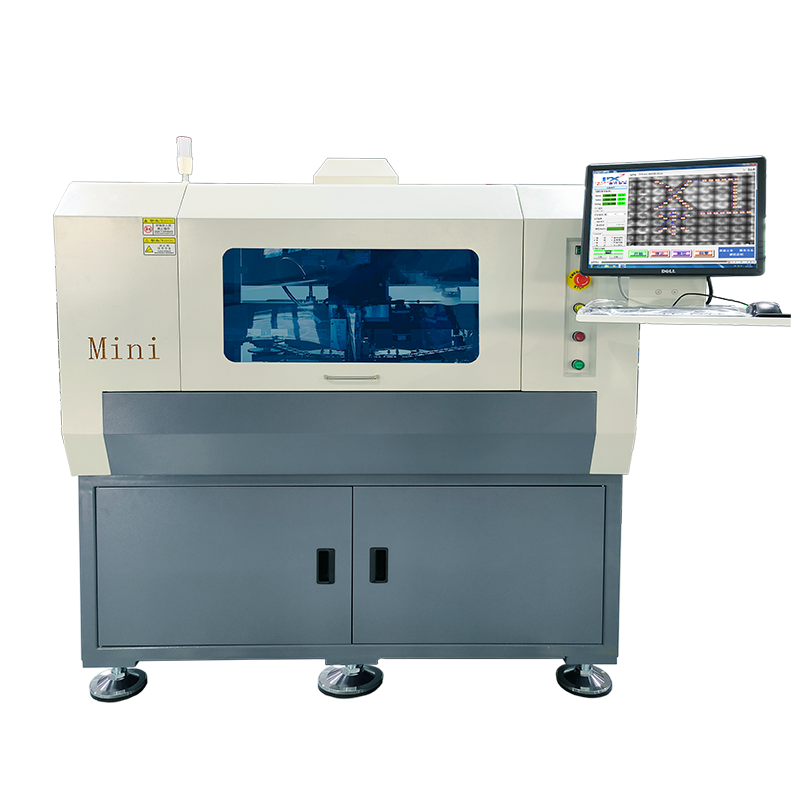

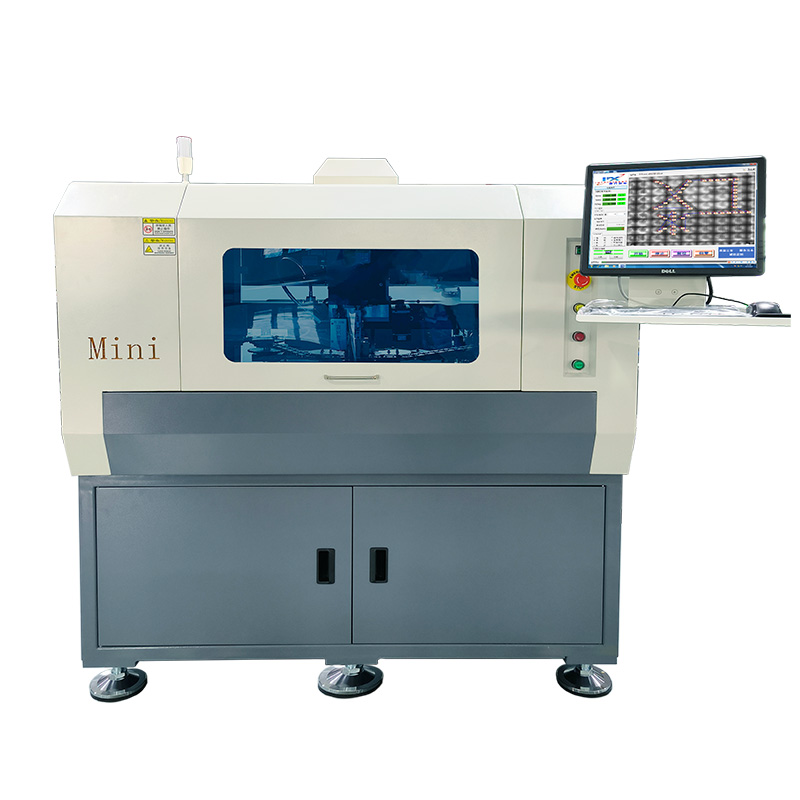

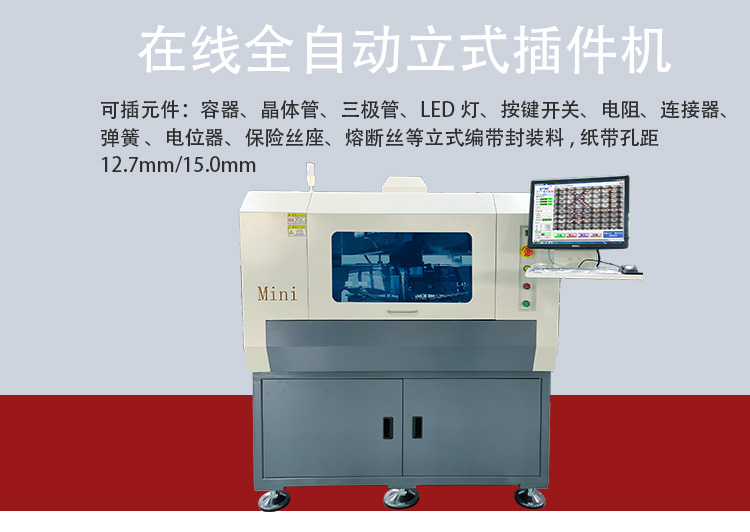

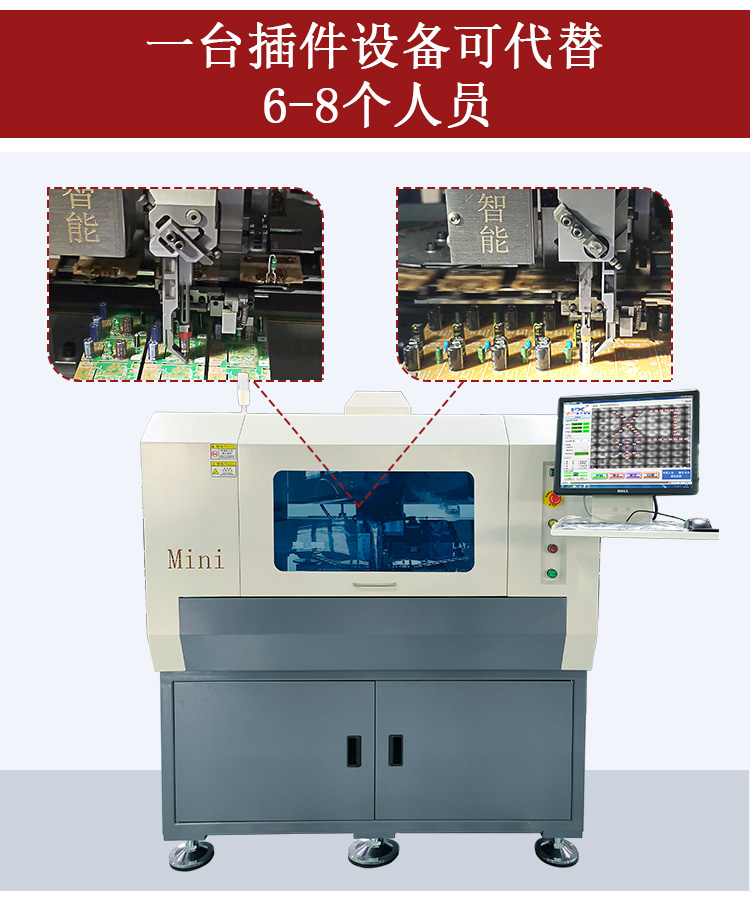

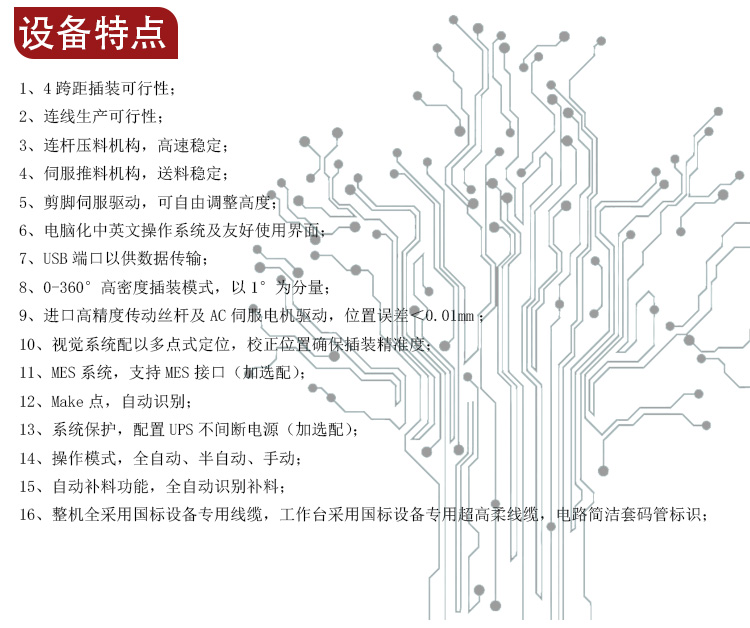

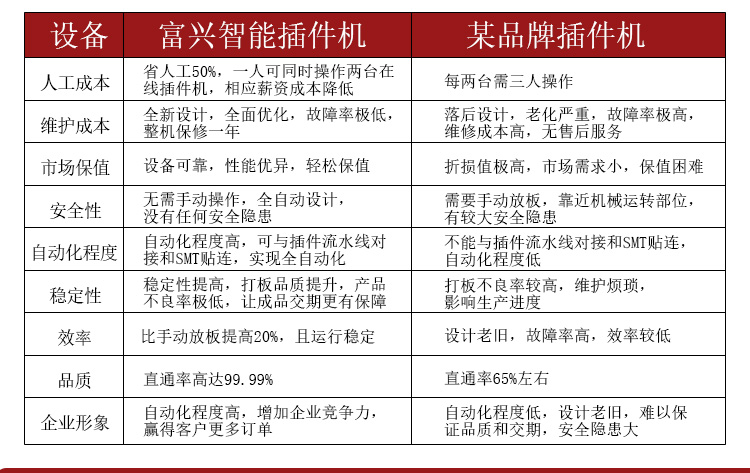

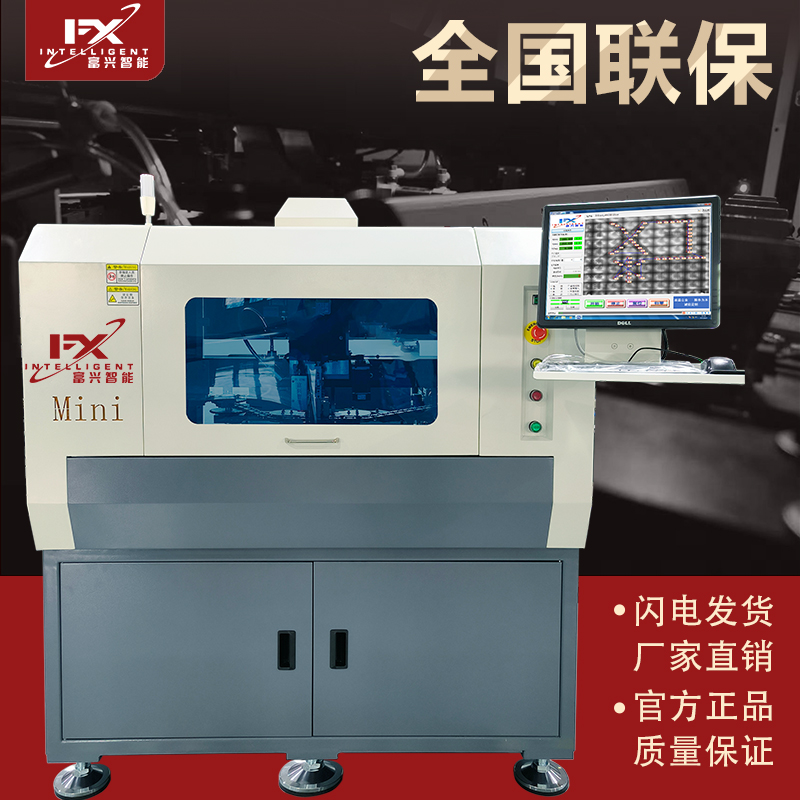

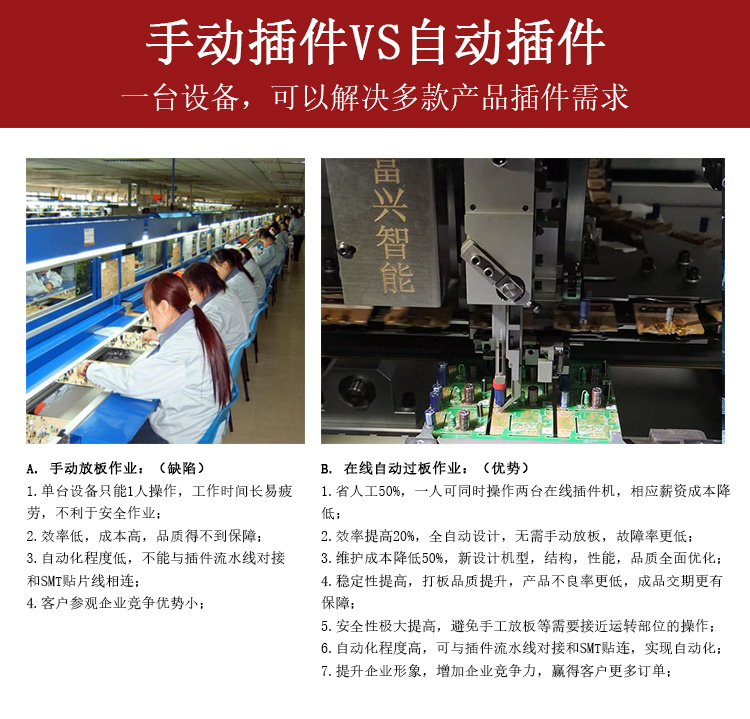

Mini型立式插件機
|

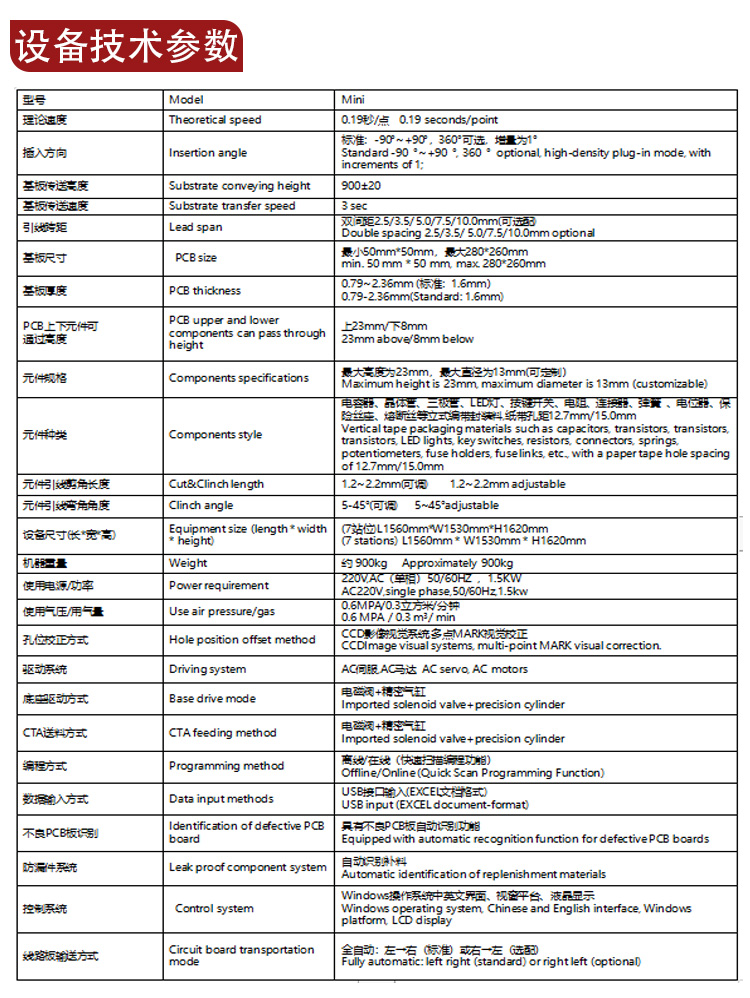

型號 |
Model |
Mini |
|
理論速度 |
Theoretical speed |
0.19秒/點??0.19 seconds/point |
|
插入方向 |
Insertion angle ? |
標準：-90°~+90°，360°可選，增量為1° Standard -90 °~+90 °, 360 ° optional, high-density plug-in mode, with increments of 1; |
|
基板傳送高度 |
Substrate conveying height |
900±20 |
|
基板傳送速度 |
Substrate transfer speed |
3 sec |
|

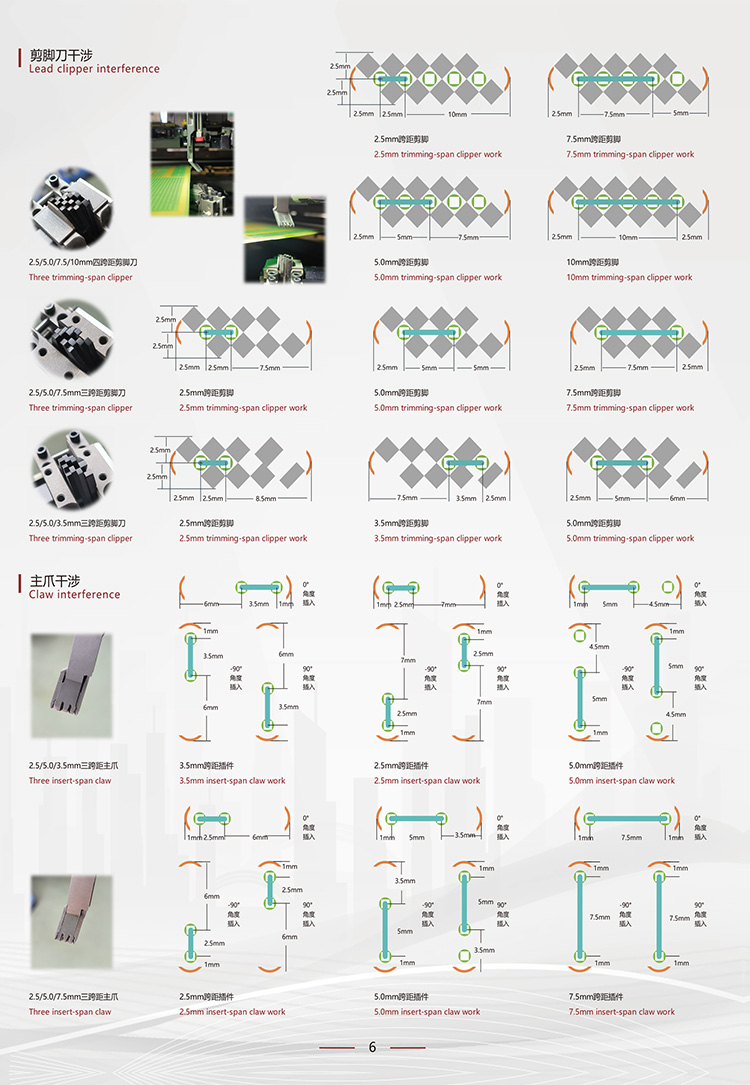

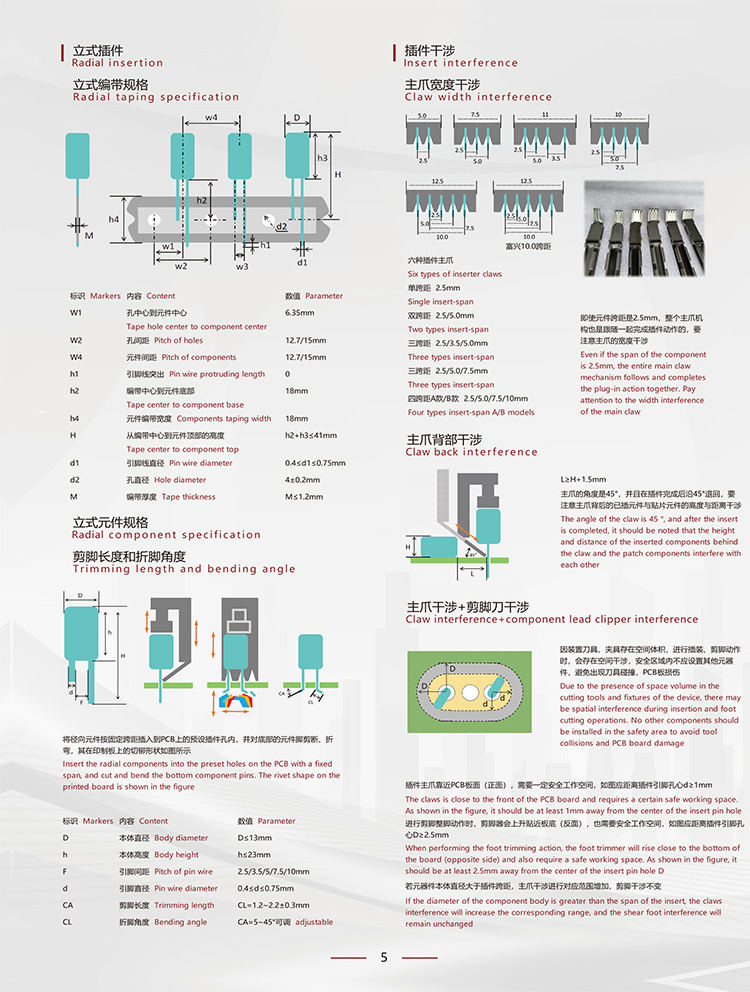

引線跨距 |
Lead span |
雙間距2.5/3.5/ 5.0/7.5/10.0mm(可選配) Double spacing 2.5/3.5/ 5.0/7.5/10.0mm optional |
|
基板尺寸?? |
?PCB size |
最小50mm*50mm，最大280*260mm min. 50 mm * 50 mm, max. 280*260mm |
|
基板厚度 |
PCB thickness ? |
0.79~2.36mm (標準：1.6mm） ? |
|
PCB上下元件可 通過高度 |
PCB upper and lower components can pass through height |
上23mm/下8mm ? 23mm above/8mm below |
|
元件規格? |
Components specifications |
最大高度為23mm，最大直徑為13mm(可定制） Maximum height is 23mm, maximum diameter is 13mm (customizable) |
|

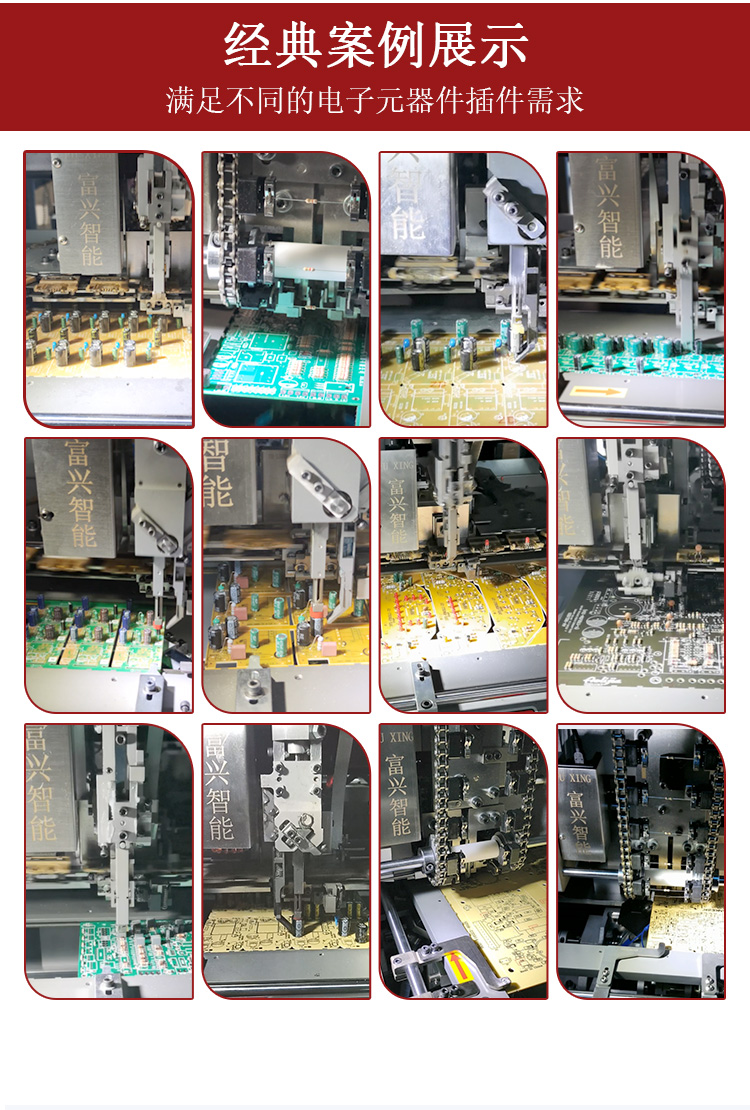

元件種類 ? |
Components style |
電容器、晶體管、三極管、LED燈、按鍵開關、電阻、連接器、彈簧 、電位器、保險絲座、熔斷絲等立式編帶封裝料,紙帶孔距12.7mm/15.0mm Vertical tape packaging materials such as capacitors, transistors, transistors, transistors, LED lights, key switches, resistors, connectors, springs, potentiometers, fuse holders, fuse links, etc., with a paper tape hole spacing of 12.7mm/15.0mm |
|

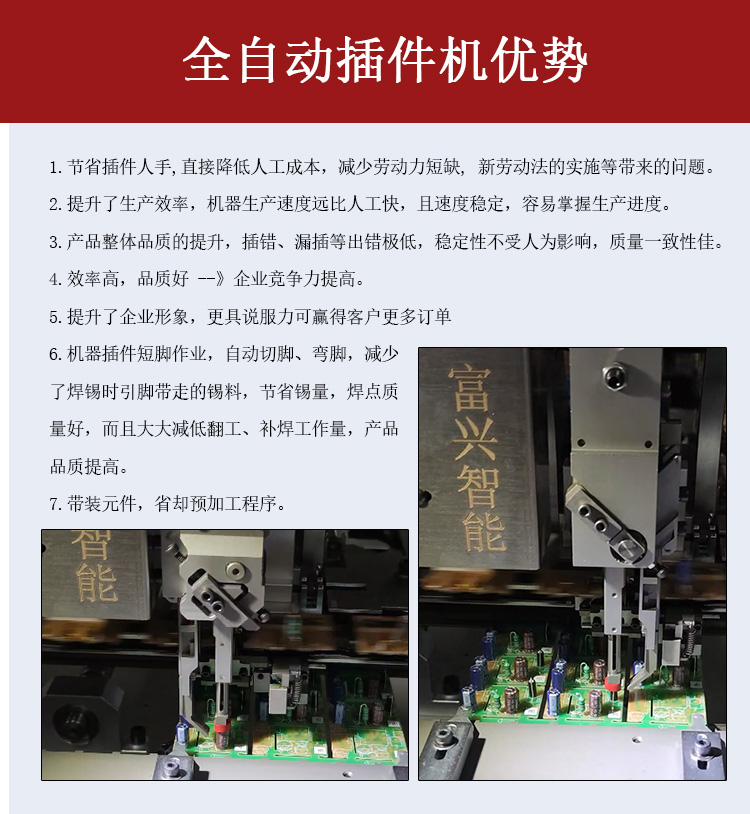

元件引線剪角長度 |
Cut&Clinch length |
1.2~2.2mm(可調)????1.2~2.2mm adjustable |
|
元件引線彎角角度 ? |
Clinch angle |
5-45°(可調) ??5~45°adjustable |
|
設備尺寸(長*寬*高) |
Equipment size (length * width * height) |
(7站位)L1560mm*W1530mm*H1620mm (7 stations) L1560mm * W1530mm * H1620mm |
|
機器重量 |
Weight |
約900kg ??Approximately 900kg |
|
使用電源/功率 |
Power requirement |
220V,AC（單相）50/60HZ ，1.5KW AC220V,single phase,50/60Hz,1.5kw |
|
使用氣壓/用氣量 |
Use air pressure/gas |
0.6MPA/0.3立方米/分鐘 0.6 MPA / 0.3 m3/ min |
|
孔位校正方式 |
Hole position offset method |
CCD影像視覺系統,多點MARK視覺校正 CCDImage visual systems, multi-point MARK visual correction. |
|
驅動系統 |
Driving system |
AC伺服,AC馬達 AC servo, AC motors |
|
底座驅動方式 |
Base drive mode |
電磁閥+精密氣缸 Imported solenoid valve+precision cylinder |
|
CTA送料方式 |
CTA feeding method |
電磁閥+精密氣缸 Imported solenoid valve+precision cylinder |
|
編程方式 |
Programming method |
離線/在線（快速掃描編程功能） Offline/Online (Quick Scan Programming Function) |
|
數據輸入方式 |
Data input methods |
USB接口輸入(EXCEL文檔格式) USB input (EXCEL document-format) |
|
不良PCB板識別 |
Identification of defective PCB board |
具有不良PCB板自動識別功能 ? Equipped with automatic recognition function for defective PCB boards |
|
防漏件系統? |
Leak proof component system |
自動識別補料 Automatic identification of replenishment materials |
|
控制系統 |
?Control system |
Windows操作系統中英文界面、視窗平臺、液晶顯示?? |
|
線路板輸送方式 ? |
Circuit board transportation mode |
全自動：左→右（標準）或右→左（選配） Fully automatic: left right (standard) or right left (optional) |
